WEIKAI manufactures counter-UAS and RF security equipment across five product families. Each system is configured for a specific deployment profile — fixed sites, vehicles, dismounted teams, checkpoints, protection details or indoor spaces. Specifications below are drawn from the product manual; final configuration is confirmed against the application.
Full specifications can be requested by email at sales@weikaiequip.com.
Category 01
Detect, identify and locate unmanned aircraft using RF spectrum analysis and direction finding. Detection data can support operator warning, recording and integration with radar, optical or mitigation systems. The WF-SW360 provides 360° coverage and identifies drone manufacturer, model and frequency in supported cases.
WF-SW360
A 360° RF detection system that identifies and locates drone signals, provides direction and altitude information, and integrates with radar, optical and mitigation systems. It supports continuous monitoring and identifies drone manufacturer, model and frequency in supported cases.
Category 02
Fixed systems protect sites that require continuous or on-demand RF mitigation. They can be controlled locally or from a central command point, and can be combined with detection for an integrated detect-and-mitigate workflow. The WF-U-WKS and WF-U-DFS provide high-power fixed jamming and deception.
WF-U-WKS
A fixed outdoor jammer for rooftop and perimeter installations. Multiple units can be managed from a central computer, with local or remote monitoring and remotely programmable bands and output power.
WF-U-DFS
An integrated detection and deception system for fixed sites. It provides early warning, drone identification and deception/dispersal, with unattended and manual modes, map upload and remote status monitoring over TCP/IP or 4G.
Category 03
Man-portable systems bring RF mitigation to checkpoints, patrols, protection details and locations that vehicles cannot reach. The range includes the WF-U-K5, WF-U-K7, WF-U-MPK6, WF-U-GK3 and WF-U-MKS, with output from 20 W to 400 W and different carry formats.

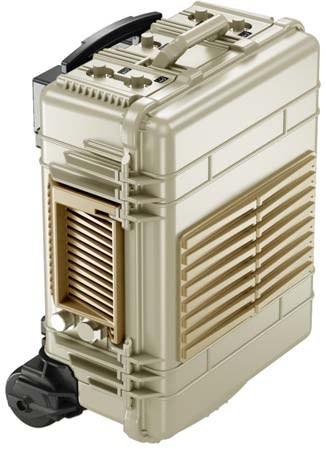

WF-U-K5
A 300 W five-module portable jammer for checkpoints, temporary sites and protection operations. Frequency and output power are field-programmable, and each module has an LCD status display.
WF-U-K7
A 400 W seven-module jammer in a wheeled transit case for mobile deployments. It blocks common 2.4 GHz, 5.8 GHz and GPS links and has a wired remote panel for on/off management.

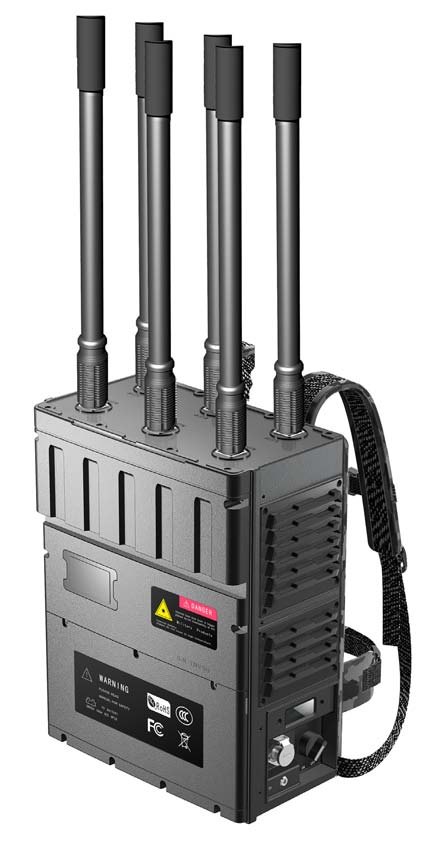

WF-U-MPK6
A 150 W backpack system for dismounted operations in difficult terrain. It has six modules, intelligent cooling, and VSWR, over-voltage and over-current protection.

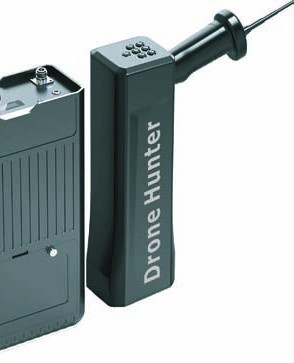

WF-U-GK3
A compact gun-type directional jammer for close-range law-enforcement and protection tasks. The low-power design has low back radiation, three modules and a built-in high-gain directional antenna.

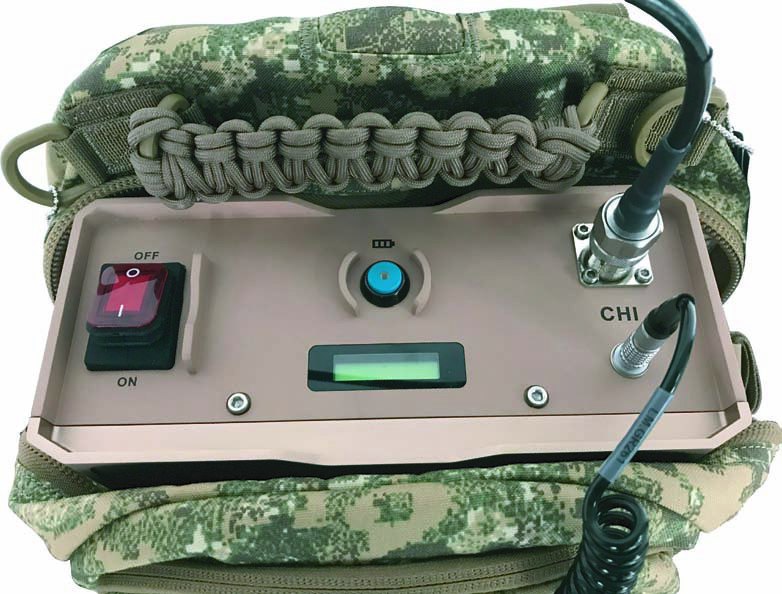

WF-U-MKS
A lightweight backpack jammer for patrols, protection details and rapid-response teams. It targets 900 MHz, 2.4 GHz and 5.8 GHz remote-control links and GPS navigation, with modular construction for maintenance and upgrade.
Category 04
Vehicle systems create a protected zone around military and VIP vehicles. They cover the 20–6,000 MHz range used by radio-controlled threats, with high output power and multiple independently controllable modules. Models include the WF-V-K24 and the WF-P-K6 / K7 / K8 family.
WF-V-K24
A 1,300 W 24-module vehicle system for military and VIP convoy protection against radio-controlled improvised explosive devices (RCIED). Modules are plug-and-play, so a damaged module does not stop the others; an optional backup battery or generator is available.

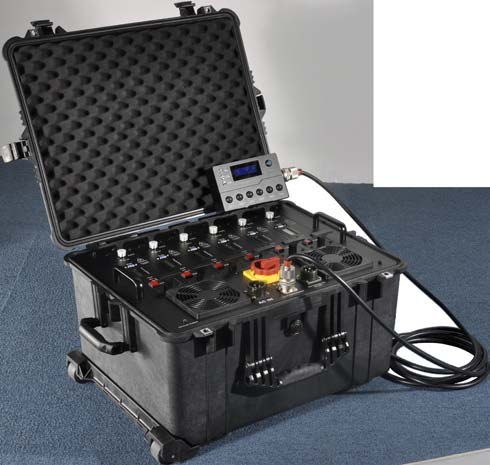

WF-P-K6 / WF-P-K7 / WF-P-K8
Rapid-deployment six-, seven- and eight-module vehicle jammers. Each can be vehicle-mounted or carried by one person; a wired remote unit controls modules individually, and two or more units can be combined to cover 20–6,000 MHz.
Category 05
Low-power systems address indoor communications control and counter-surveillance. The WF-DJ7 provides discreet indoor detection and jamming in a frame-style enclosure; the K5000 PLUS is a handheld wireless-signal detector; the WF-K8 is an eight-band handheld jammer for controlled indoor use.
Discreet indoor communications control and counter-surveillance tools for meeting rooms, secure offices, vehicles and controlled indoor spaces.
WF-DJ7
A wall-mounted frame-style unit for meeting rooms and secure offices. It detects an active phone link and jams it, then returns to sleep; output power is adjustable by computer over RS-232.

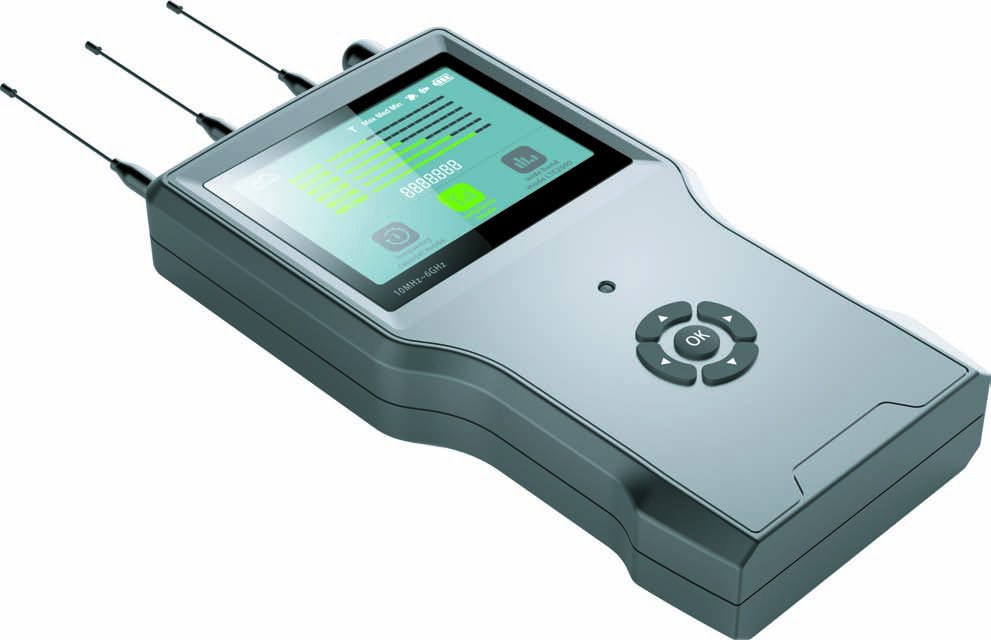

K5000 PLUS
A handheld detector for counter-surveillance sweeps in rooms and vehicles. Three modes — frequency meter, mobile-phone and broadband — cover wireless cameras, microphones, phones, radios, Wi-Fi and other RF emitters.

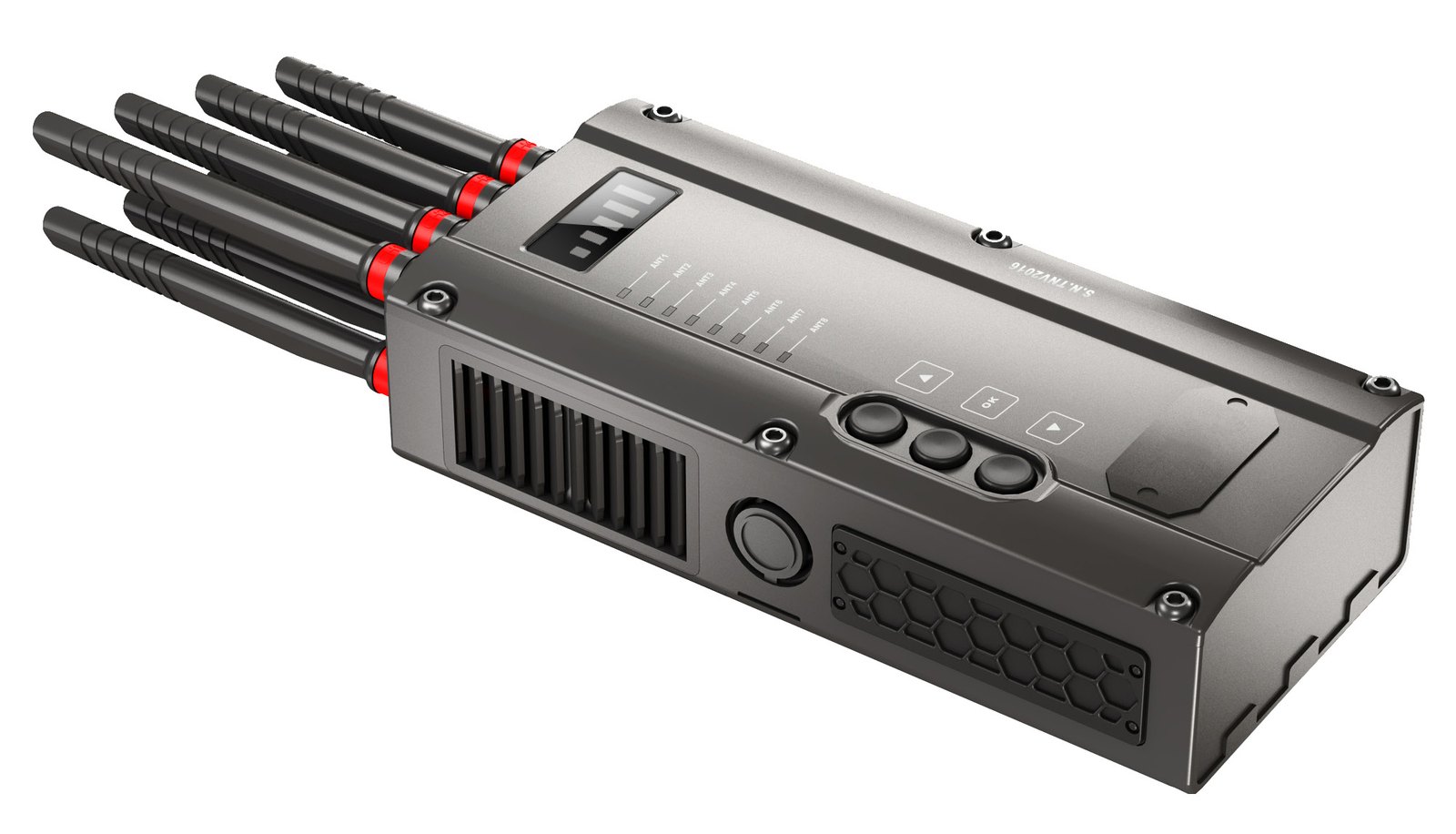

WF-K8
An eight-band handheld jammer for controlled indoor use where temporary, portable communications restriction is required. Each band has an independent switch, and a built-in cooling fan and heat sink support continuous operation.
Tell us about the site, the platform and the frequency environment. Our team will help match a product family or discuss an OEM/ODM project.
